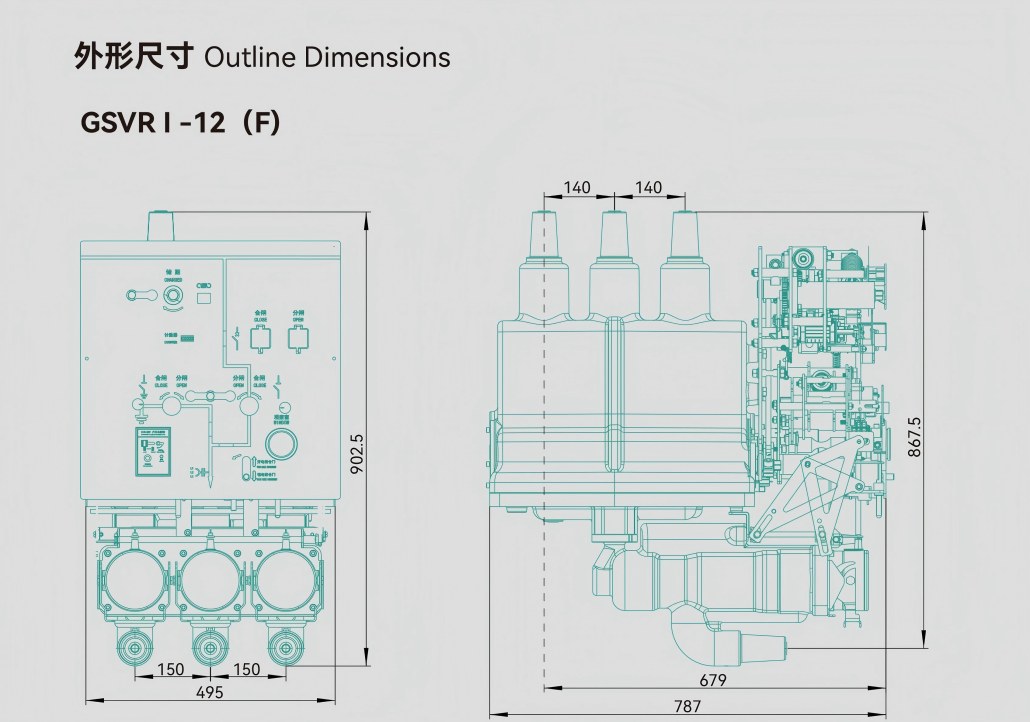

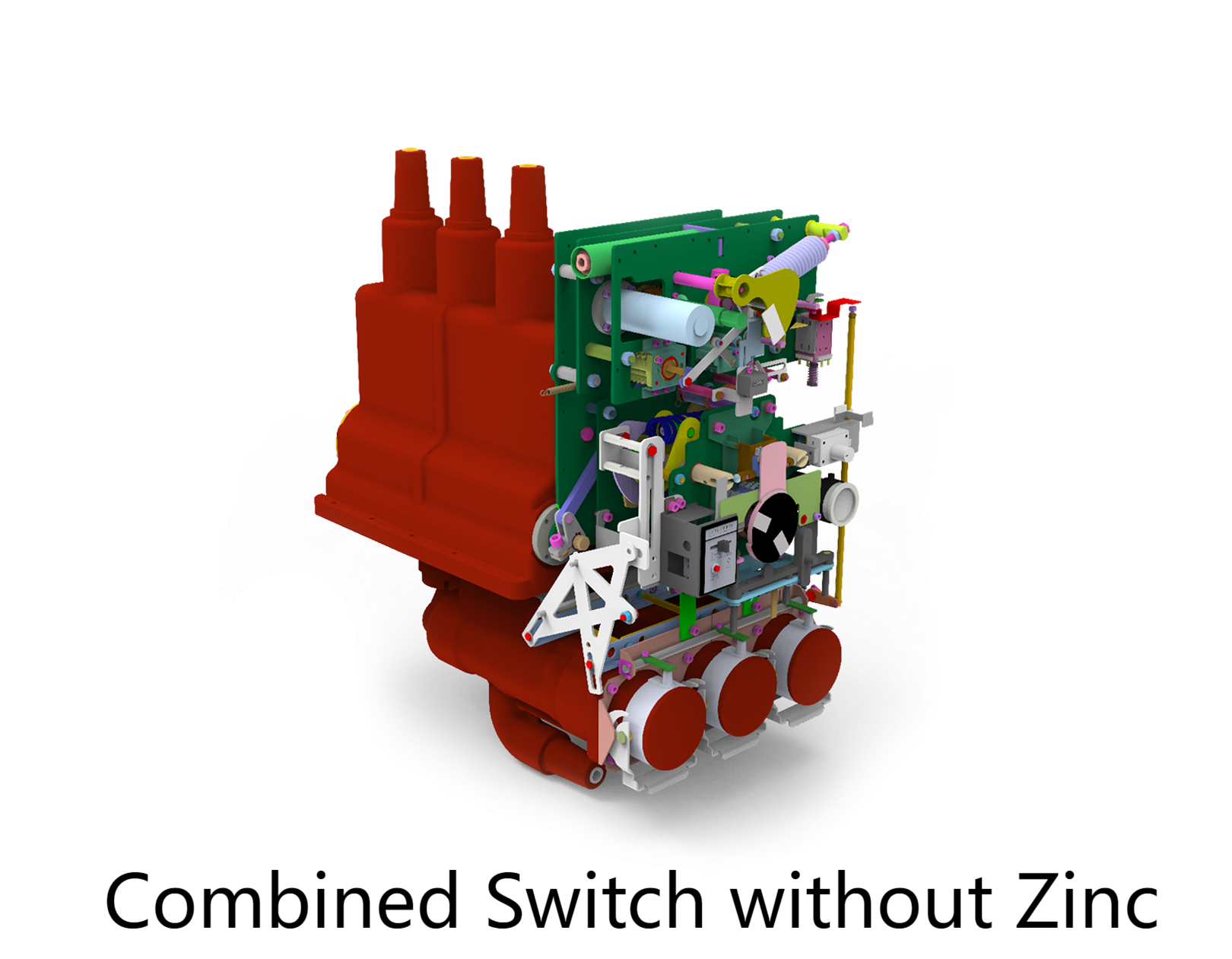

12kV Solid Insulation Switch

Product Model: GSVRⅠ-12(F)

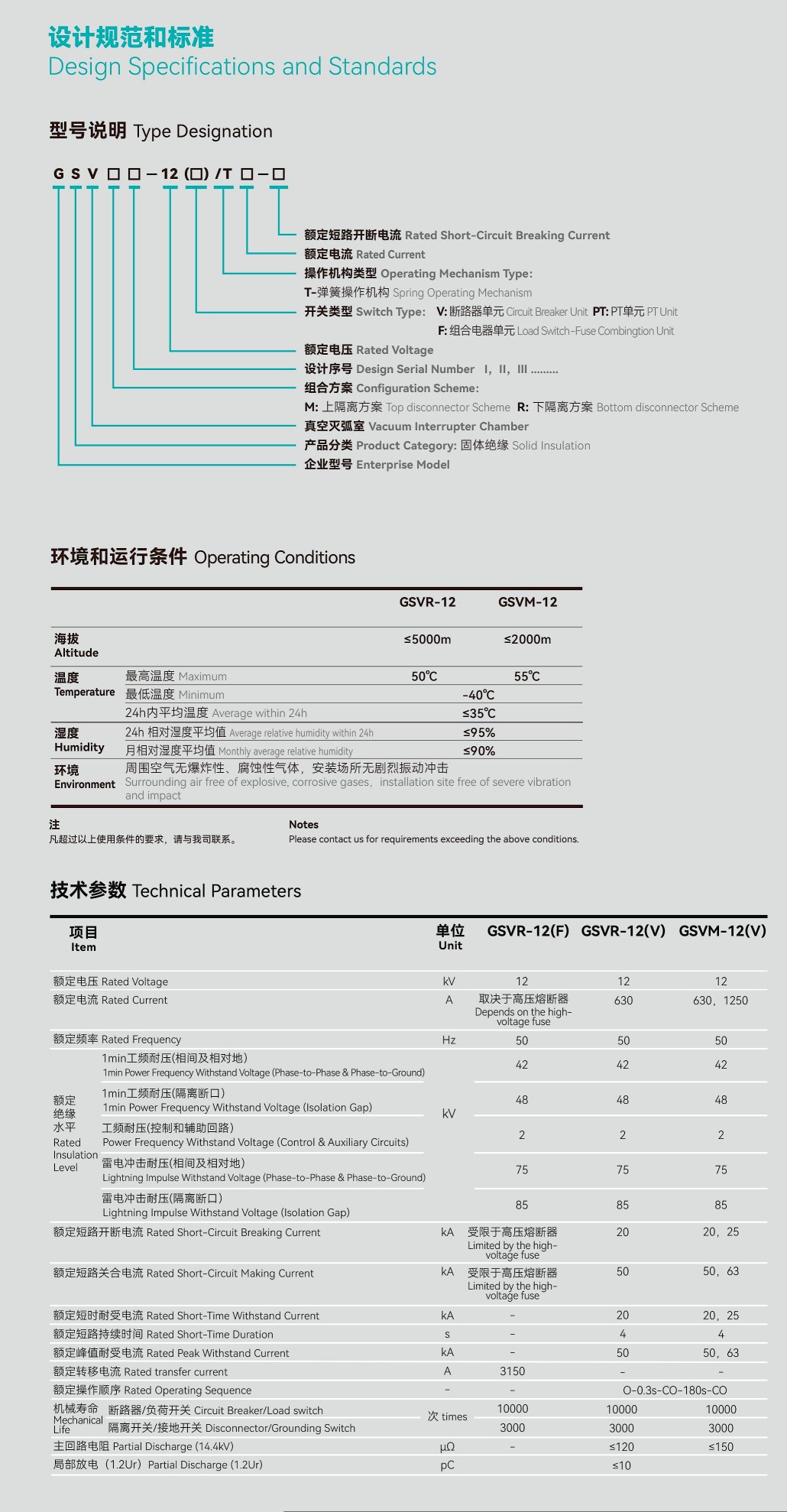

Rated Spec: 12 kV – 125 A / 31.5 kA (current & breaking level set by HV fuses)
Altitude: ≤ 5000 m
Panel Extension: Top only
Operation: Manual or Electric
Earthing Switch: With / Without
Control Voltage: 24 V / 48 V / 110 V / 220 V

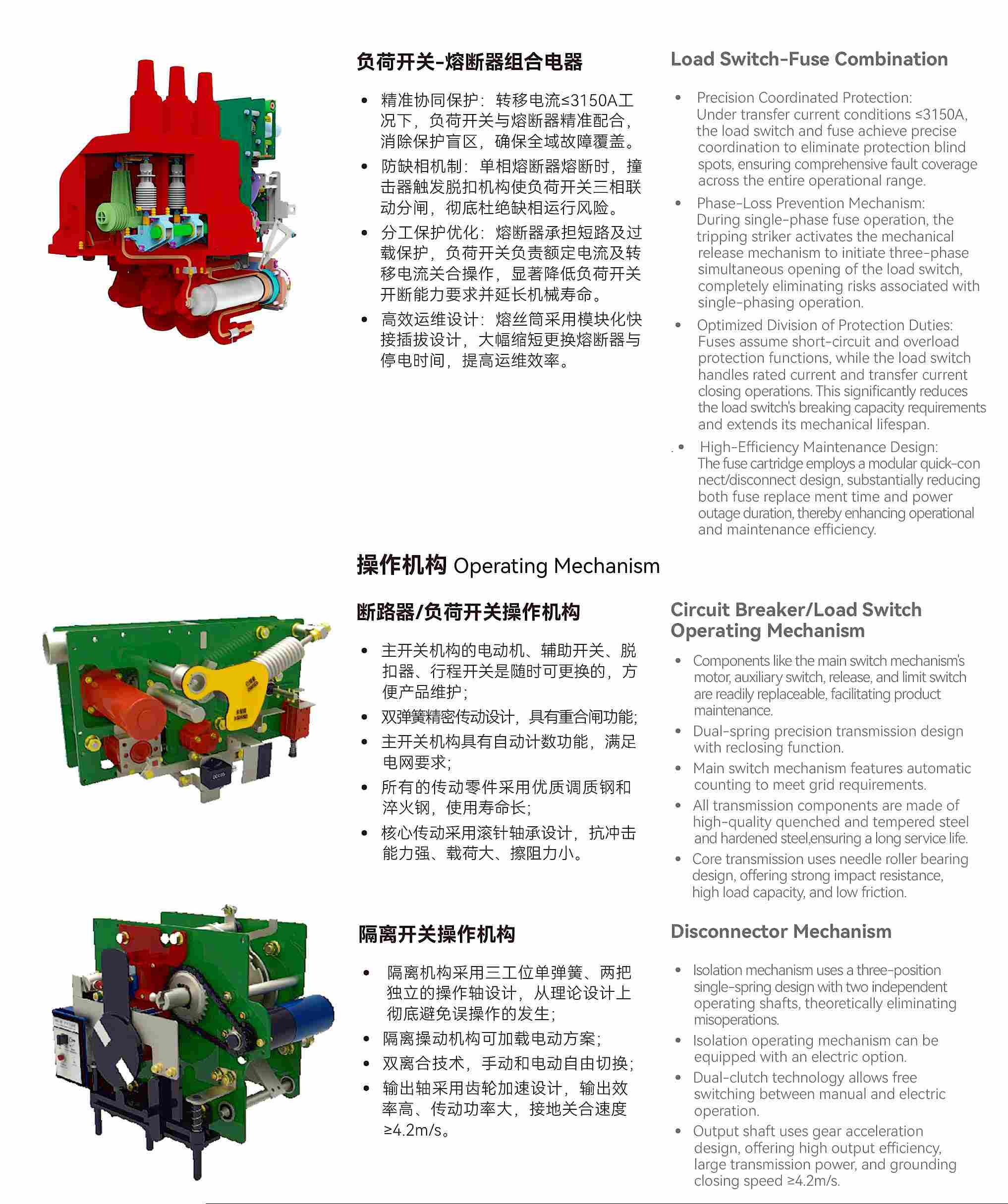

Configuration: Load-break switch-fuse combination , 3-position disconnector (isolating/earthing)
