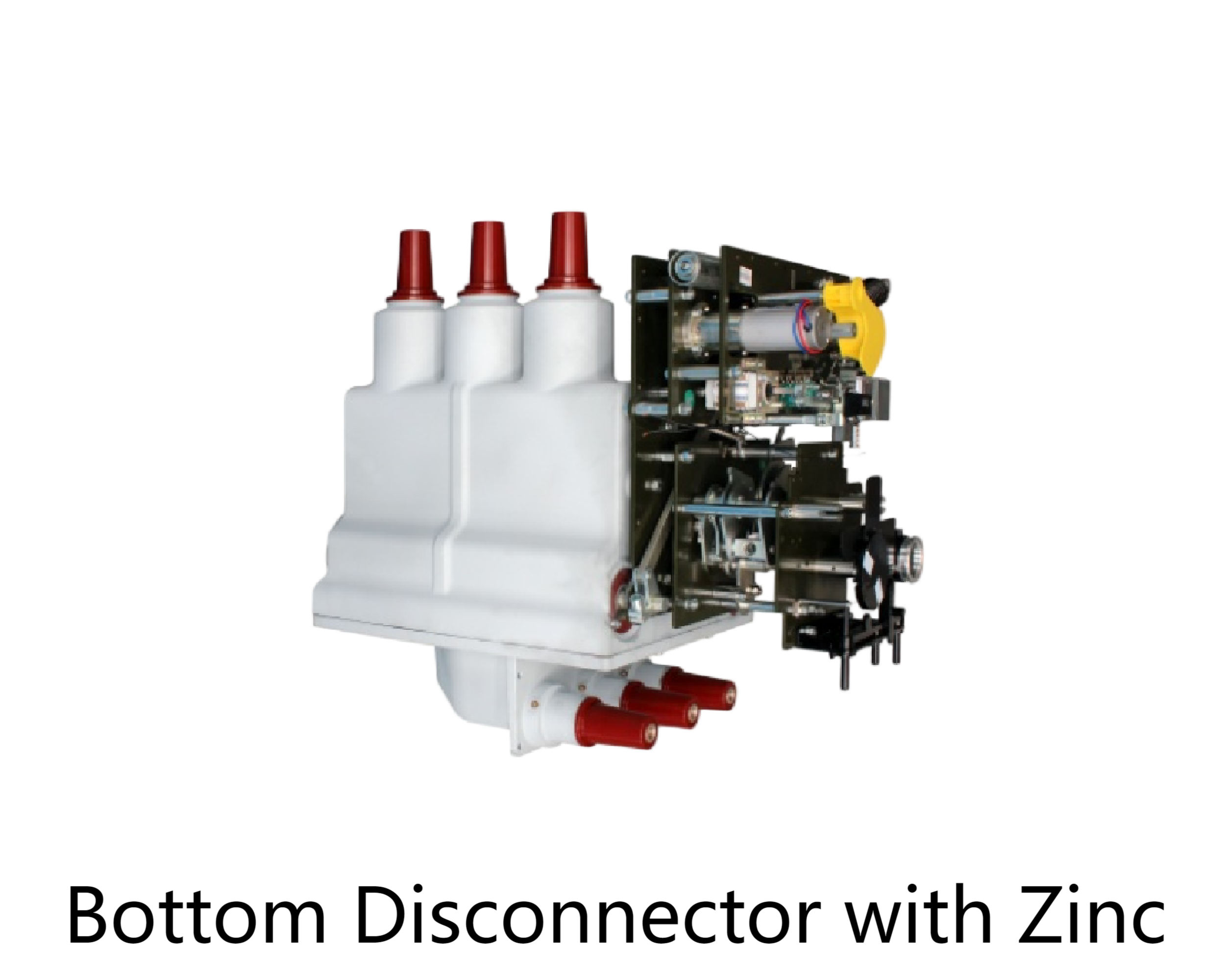

12kV Solid Insulation Switch

Product Model: GSVRⅡ-12(V)

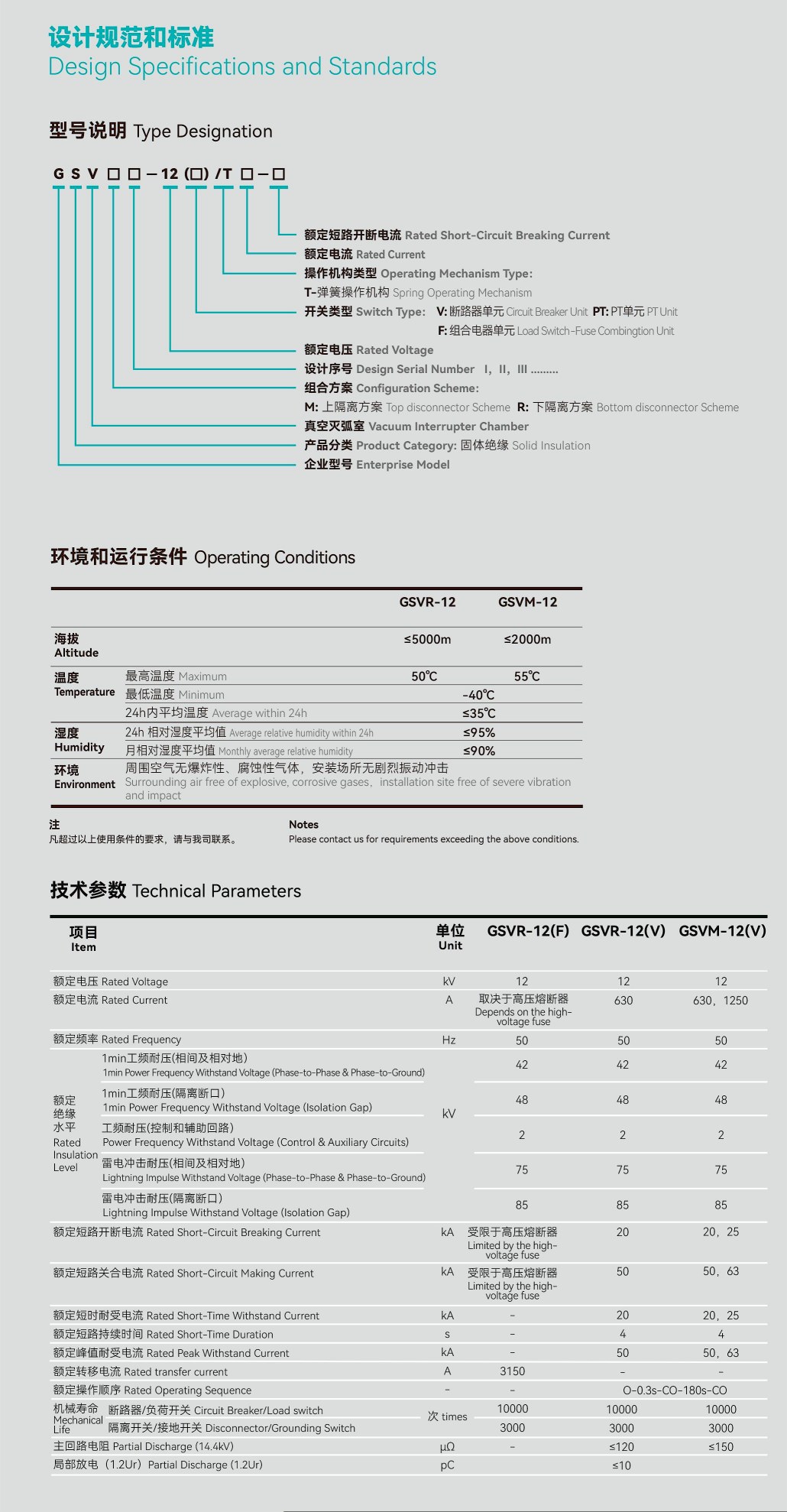

Rated Spec: 12 kV – 630 A / 20 kA
Altitude: ≤ 5000 m
Panel Extension: Top only
Operation: Manual or Electric
Earthing Switch: With / Without
Control Voltage: 24 V / 48 V / 110 V / 220 V

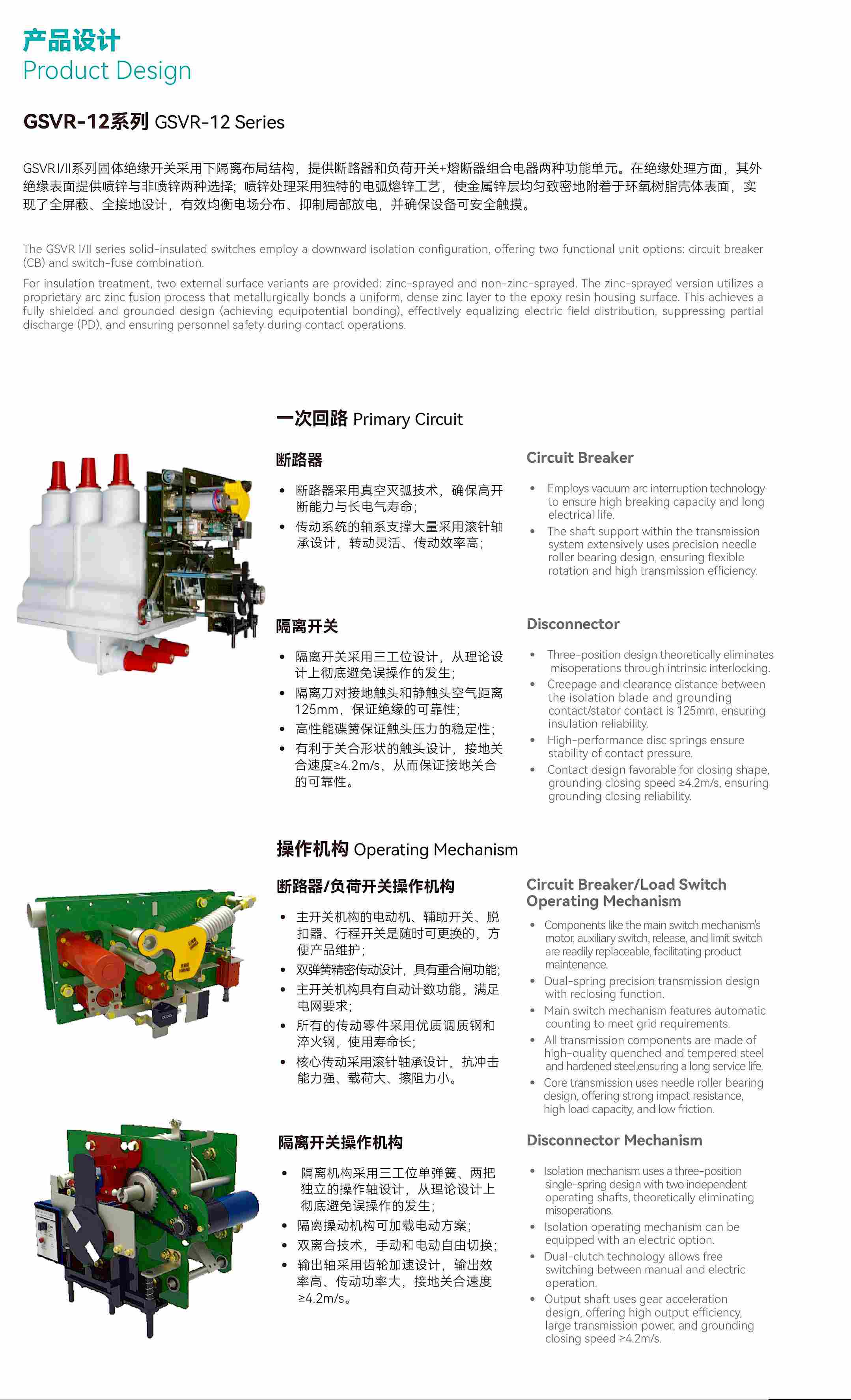

Configuration: Vacuum circuit-breaker , 3-position disconnector (isolating/earthing)
