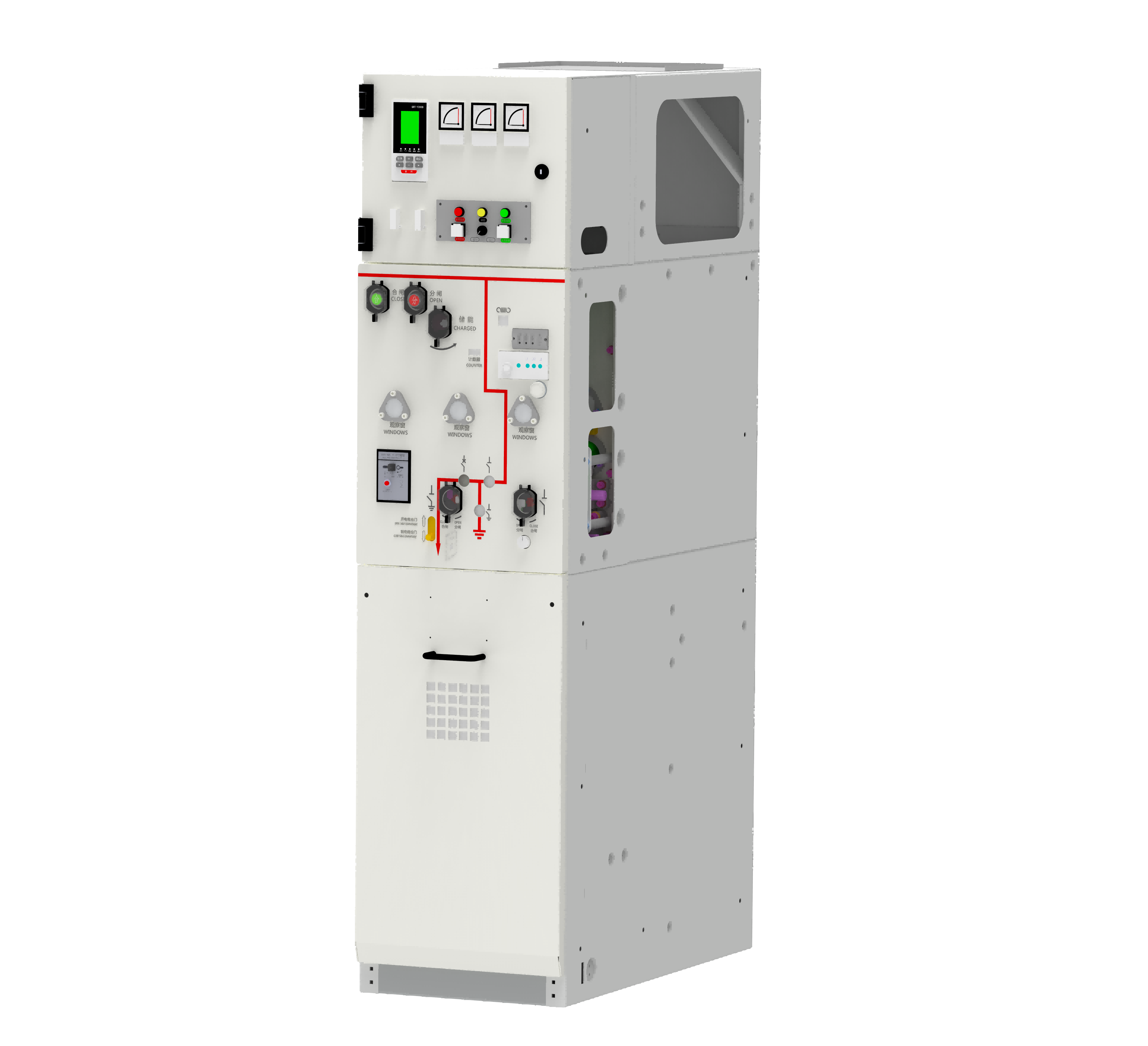

Solid Insulation Switch

Product Model: GSVR-12
Rated Specification: 12 kV – 630 A
Core Unit Configuration: Upper-isolation / Lower-isolation
Altitude Classifications: ≤ 1500 m / > 1500 m
Operation Mode: Manual / Electric
Rated Short-circuit Breaking Current: 20 kA / 25 kA
Integral Earthing Switch: With / Without
Control Voltage: 24 V / 48 V / 220 V (110 V on request)
Standard Configuration: Vacuum circuit-breaker / load-break switch , three-position disconnector
